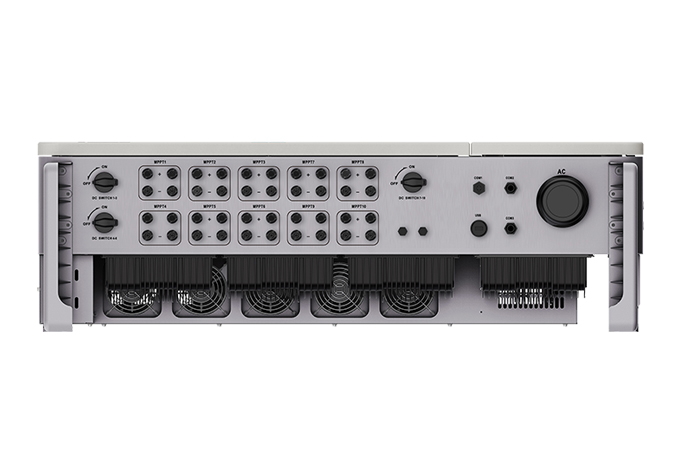

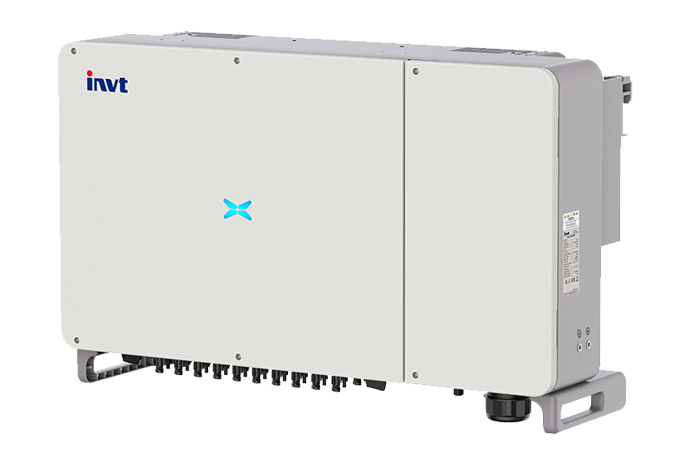

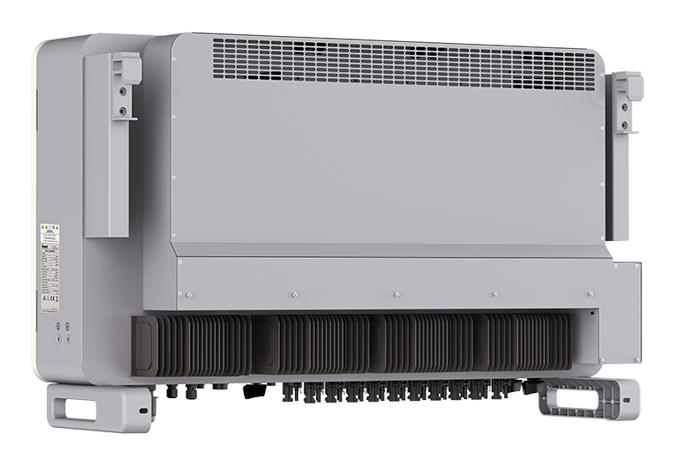

XG 100-136kW Three-Phase On-Grid Solar Inverter

XG100-136kW three-phase on-grid solar inverters have high power density and are equipped with one-stop intelligent data management platform to provide flexible and efficient solutions for larger industrial and commercial power stations, large poverty alleviation power stations and large ground power stations.

특징들
설명서
응용 프로그램
다운로드

1. Efficient

* Support over capacity ratio: 1.6X DC input overload

* High energy continuous output: 1.1X AC output overload

* The MPPT efficiency is up to 99.90%

* The lowest starting voltage can reach to 160V

2. Flexible

* Intelligent IV scanning function: it can accurately locate the fault string and make the operation and maintenance more efficient

* 9~12 MPPT : more flexible string configuration and more choices for installation

* Remote maintenance: support online remote upgrade

* Fan drawer design: 1 minute quick fan replacement

3. Reliable

* IP66

* Anti-islanding protection, Input over current proteciton, Output over current protection, DC reverse connection protection, String fault protection, Surge protection, Insulation resistance detection, AC leakage current detection, PID repair, Low voltage ride through, Arc fault detection, Night SVG function, etc.

4. Intelligent

* Intelligent monitoring: one-stop intelligent operation and maintenance platform for users, providing comprehensive and intuitive power station data monitoring

* Support RS485 / USB / WiFi / GPRS

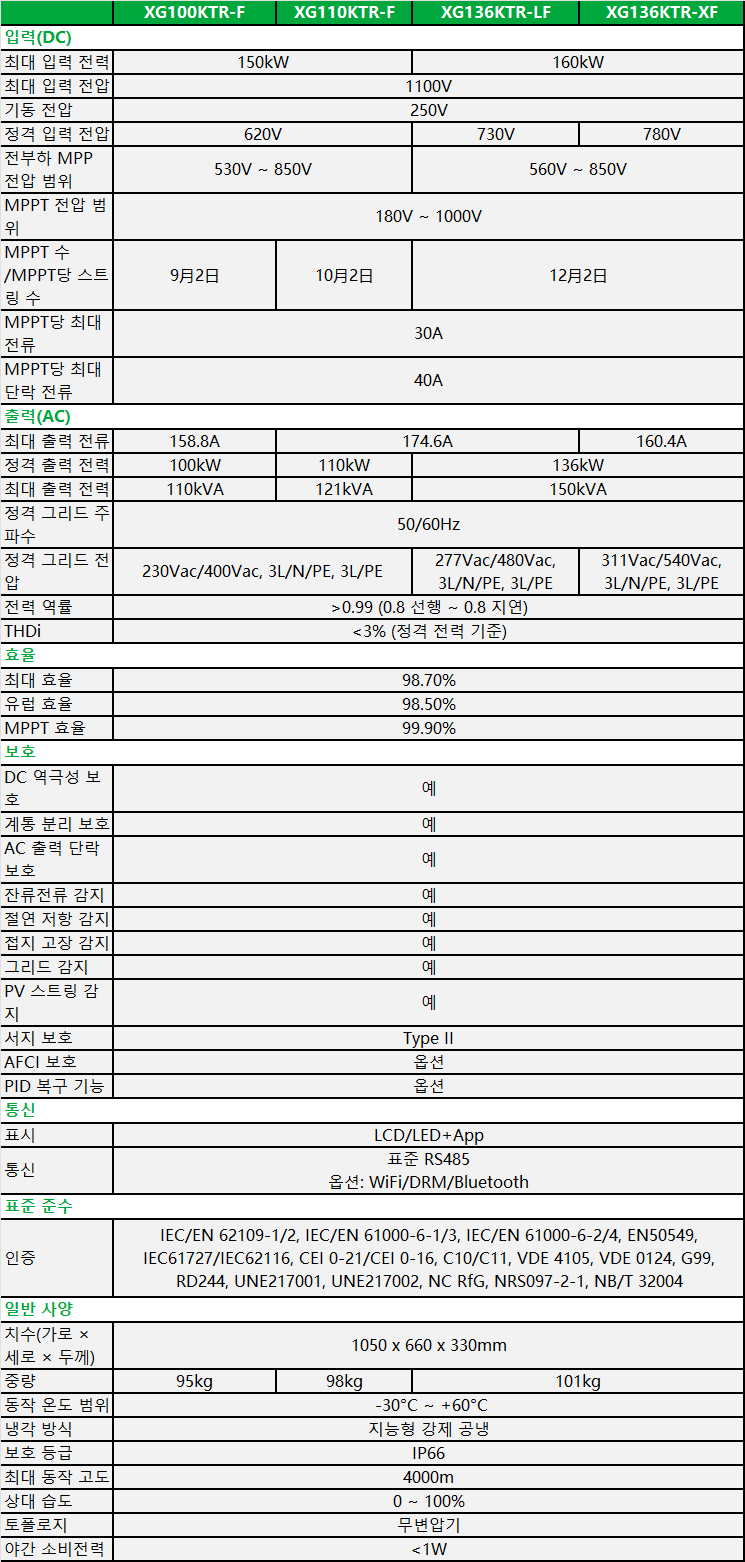

XG 100-136kW SPEC.png
