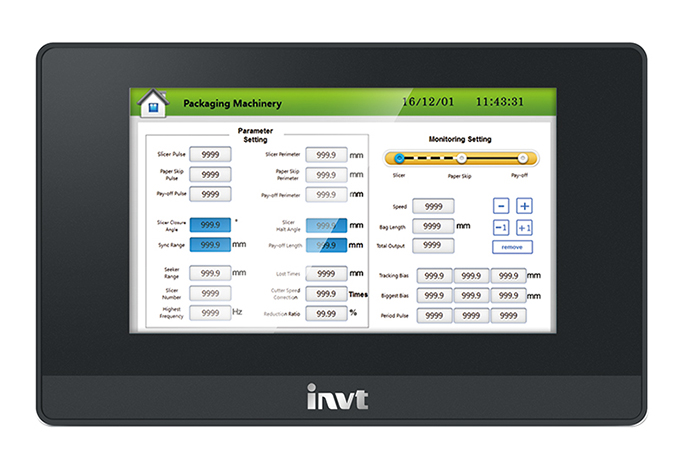

VS-Q Series HMI

Carry high-performance industrial Cortex-A7 processor, main frequency can be up to 1.2GHz
Improve data processing efficiency greatly

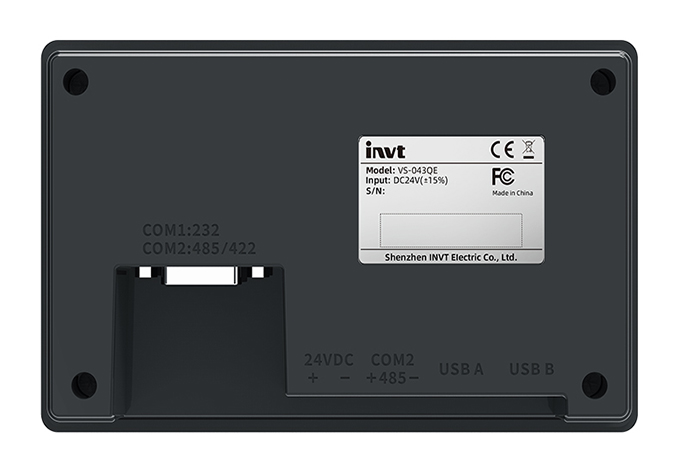

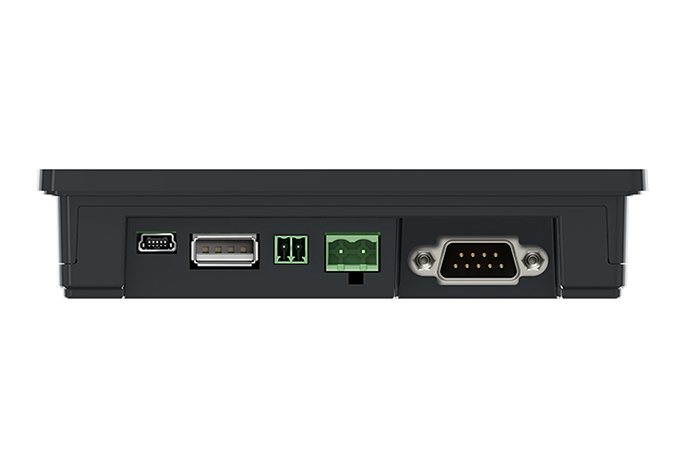

Built-in COM port is integrated with RS232/422/485 communication modes
Support industrial Ethernet communication, realize data exchange among multiple devices via built-in 10M/100M self-adaptive network card
Support free port communication protocol

Abundant built-in vectorgram library
Support customized vectorgram
Provide standard outline for common vectorgram
Support macro instruction programming, C language script
Support U-disk update and data import/export

PC can communicate with PLC directly via HMI
Support two HMIs to communicate simultaneously with one PLC
Online simulation function, PC can be connected to PLC directly to simulate configuration project
Alarm record memory can be expanded

Support five languages
Support TRUE TYPE (TTF) font
Support complicated font edit
Unicode coding, international standard

Industry-level design enables stable operation
High-capacity FLASH, power-off memory, support U-disk storage
New password system which is safer and more reliable

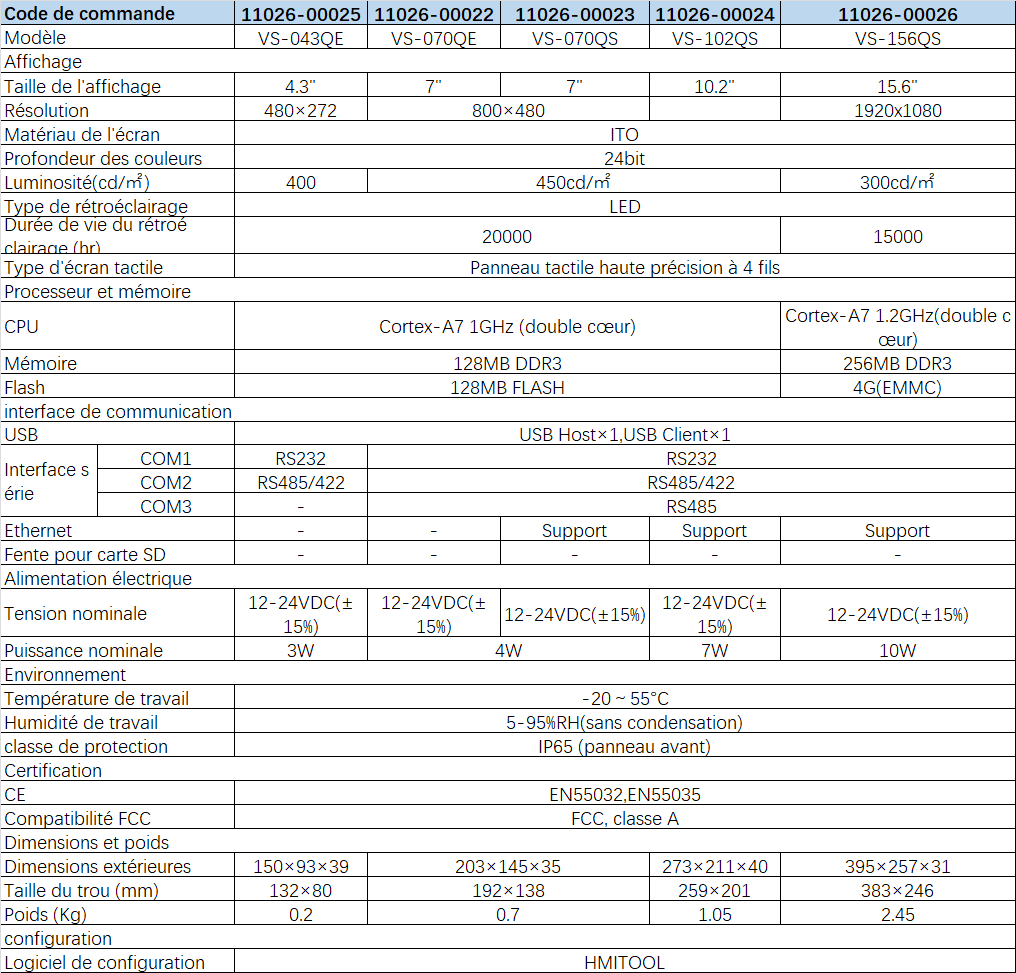

Specification:
