INVT TS635 PLC for Thin-Blade Splitting-Scoring Machines in China

Since the 15th Five-year Plan, the cardboard packaging industry has developed rapidly, and currently the demands for commodity packaging and logistics packaging are basically met in the market.

Nevertheless, with the advancements of industry technologies, the demands for packaging are increasing further, and cardboard boxes are gradually transitioning from simplification to diversification. In this context, it is urgent for packaging enterprises to fulfill their transformation and upgrade.

A packaging enterprise has encountered problems where delayed servo action responses, occasional alarm communication timeouts, and frequent program upgrade requests occur in its original control system during actual operation, and the control and drive systems of its production equipment can no longer fully meet the needs of cardboard box processing. As a result, upgrade and reconstruction has become a necessary choice.

Brand-New Upgraded Solution

With an eye on these old system problems, INVT has launched HMI + TS635 + DA180 servo system, which is an brand new solution to improve the production efficiency and operational convenience of thin-blade splitting-scoring machines.

This solution adopts a 3000rpm high-speed servo motor, which is characterized by precise and fast order switchover and positioning. In terms of touch screen interaction, multiple production mode such as flat-mouth box, cover-and-tray box, large scored cardboard, and folding box are embedded in the system, making it convenient for customers to quickly make a choice according to their actual production needs.

In addition, the solution employs a design of full servo plus planetary reduction gearbox drive for reconstruction, which can complete a series of actions such as preliminary pressing, constant pressing, and splitting in one go and therefore greatly improve the work efficiency.

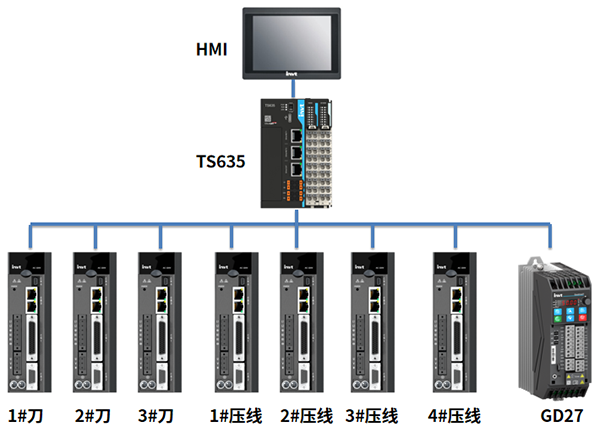

Topology Diagram of Solution

Diversified Functions

As a new product, TS635 has brought new applications to cardboard box processing and production equipment through its advantages.
1. The one-click manual/automatic mode switchover and one-click setting functions make it easier to operate thin-blade splitting-scoring machines.
The full servo plus planetary reduction gearbox drive can complete multiple actions such as preliminary pressing, constant pressing, and splitting in one go.

The order switchover function enables an order switchover to be completed within 1-10 seconds, greatly reducing the machine adjustment time and improving the work efficiency.

The system is embedded with multiple production modes, which can be quickly selected according to actual needs to improve utilization convenience.

Support for New Breakthroughs

Thanks to its excellent performance and flexible applications, INVT TS635 PLC has successfully upgraded the solution for thin-blade splitting-scoring machines, further improving their control and drive systems, and providing users with a more efficient and convenient solution.

Next, cardboard packaging industry will also face some new challenges. The PLC, servo, and other series of products from INVT will replace traditional technologies through their advantages such as low consumption, low pollution, and high efficiency, promoting the sustainable development of the industry and helping customers achieve new breakthroughs.
