GD27 Series Smart VFD

GD27 is a newly designed smart VFD, in compact structure, with excellent performance and rich functions, simple and easy to use. It can be widely used in industries such as woodworking, textiles, food, printing and packaging, plastics, HVAC, logistics and transportation equipment.
Power range:
AC 1PH 200V ~ 240V 0.4kW~2.2kW
AC 3PH 200V ~ 240V 0.4kW~4kW
AC 3PH 380V ~ 480V 0.75kW~7.5kW
  • Features
  • Specification
  • Application
  • Download

1. Excellent drive control
* Support for sensor-less vector control and permanent magnet synchronous motor control;
* Built-in braking unit configured for the entire series;
* Built-in Modbus communication, and transient power loss ride-through;
* Support for multi-step speed and simple PLC control;
* STO and EMC filters embedded for EU models.

2. Ease of use
* User-friendly operation interface, simple parameter structure, one-click parameter copy and download, making the commissioning more easy;
* Compact size, and cover-free design for power line terminals, achieving more easy and fast onsite installation.

3. Stable and reliable
* The innovative independent air duct design and standard coated circuit board help prevent dust and oil from entering the VFD, fully protecting the electronic components on the PCB board, to ensure longer product life and reliability.

4. Saving time and improving efficiency
* GD27 VFDs can be installed side-by-side to save cabinet space;
* Push-in spring-loaded control terminals achieve fast tool-less wiring;
* Multiple versions are available for customers to flexibly choose the right products on demand, reducing procurement cost.

Characteristics

Advantages

Embedded ECM filter1

Compliant with EN/IEC61800-3 C3

Embedded STO function1

Compliant with EN/IEC61800-5-2 SIL2

Compact bookstyle design

Support for side-by-side mounting, saving   cabinet space

Push-in spring-loaded control terminals

Tool-less wiring, saving 50% of wiring time

Support for DIN rail mounting2

Making disassembly and assembly easy,   saving time and effort

Natural cooling (frame A)

Without noise, good environment   adaptability

Support for parameter copying keypads

Facilitating batch operation and   maintenance

Standard models and EU models available

Wide range of models for selection, saving   procurement cost

Support for IM and PM motors

Enabling customers to select motors as   required

Enhanced circuit board coating

Improving reliability in hostile   environments

Pluggable   fan

Easy to maintain

Built-in   braking unit

No external configuration need, saving cost

1) The EU models have been embedded with STO and EMC filters as standard configuration.

2) The DIN rail mounting bracket is optional. Only frames A and B support DIN rail mounting.

Video:

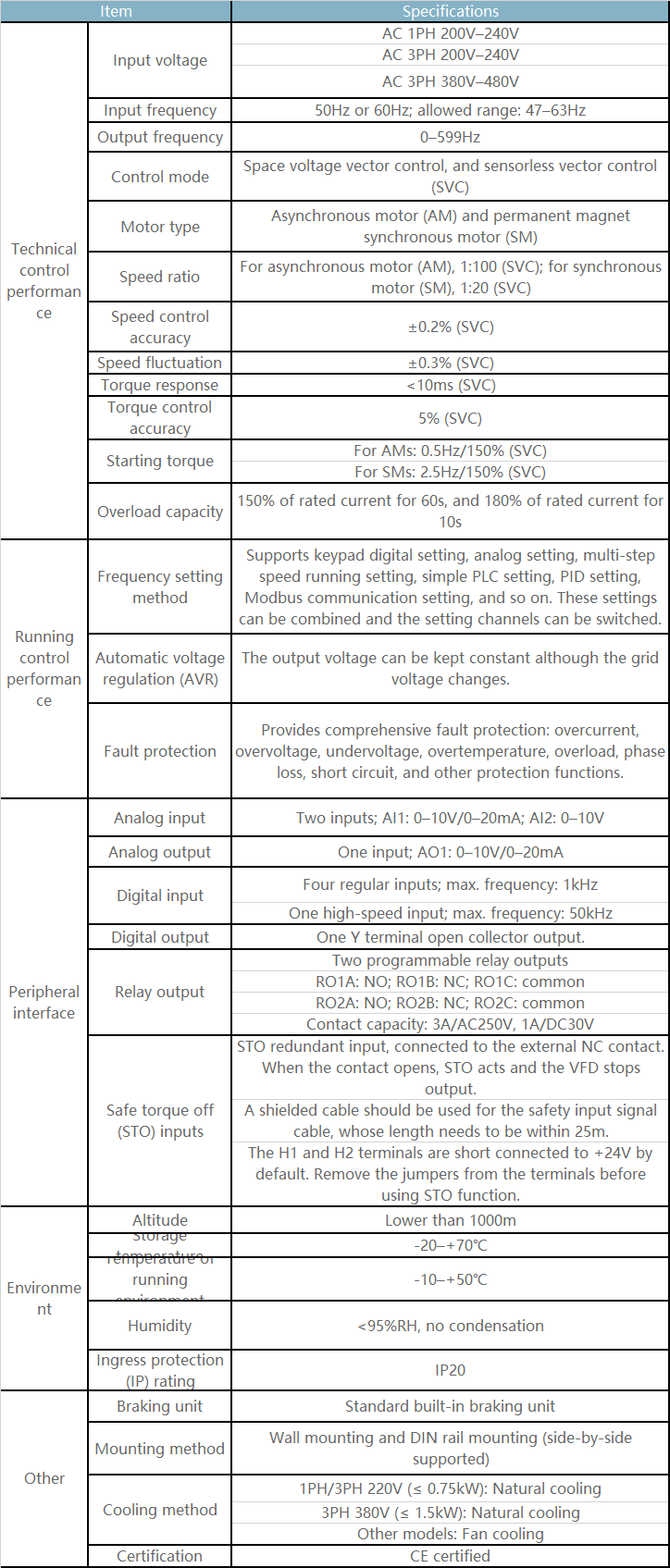

Specification:

Function

Specifications

Input voltage

AC 1PH 200V–240V
AC 3PH 200V–240V
AC 3PH 380V–480V

Overload capacity

150%/60s,180%/10s

IP rating

IP20

Environment condition

-10–50℃

Altitude

Below 1000m. Derate by 1% for every   increase of 100m when the altitude is 1000–2000m.

EMC

EU models with built-in C3 filters, meeting   class C3 requirements (4kHz/10m)

Safety

The safe torque off (STO) meets EN/IEC   61800-5-2: SIL2 design.

Motor control

Space voltage vector control (V/F), and sensorless   vector control (SVC)

Motor type

Asynchronous motor (AM) and permanent   magnetic synchronous motor (SM)

Power supply for the external

10V, max output 50mA; 24V, max output   100mA;

Analog input

AI1: 0~10V/0~20mA; AI2: 0~10V

Analog output

AO1: 0–10V/0–20mA

Digital input

Four regular inputs (supporting only NPN);   max. frequency: 1kHz;

One high-speed input. Max frequency: 50KHz;

Digital output

One Y terminal open collector output

Relay output

Two groups of relay output (3A/AC250V,   1A/DC30V)

Note: EU models have a group of relay and a   group of STO function terminals.

Communication

The RS485 and Modbus communication   functions have been embedded as standard configuration.

Certification

CE requirements are met.
