INVT DA260 Servo for Cutter Maching of Woodworking Machining Center in China

I  Project background

Recently,China's economy has sustained and rapidly developed and the people's living standards have improved,the domestic demand for timber continues to grow,promote the vigorous development of the wood processing industry. Woodworking machinery is an indispensable link in the production process of wood processing,China's woodworking machinery is constantly developing and improving to achieve the individual needs of customers,product flexibility and intelligence are the direction and focus of future development.

II  Project difficulties

The cutter maching is currently the main production equipment of small and medium-sized furniture manufacturers,mainly used for cutting, grooving, milling, drilling, including large machine and small machine two styles,The customer makes the following requirements depending on the equipment:

1.Each axis of the machine runs smoothly and has stable performance;

2.Efficient and fast response and precise positioning;

3.Reduce costs and improve work efficiency;

III  INVT solutions

Tailored to the needs of our customers,INVT uses DA260+DA200+GD20 system solutions,The following features of DA260 are in line with the function of the cutter maching,the scheme has the advantages of high efficiency, low cost and easy operation.

1）The response frequency is 2.0kHz, the dynamic response is high,Settling time is  shortened .

2) Use 23-bit high-precision multi-turn absolute encoder for accurate positioning.

3)Using Ethercat bus communication mode, support multiple servos and host computer communication at the same time..

4)Intelligent gain adjustment and switching.

5)With STO and CE safety speed limit function.

IV  Customer benefits

1)Effect: Each axis of the machine runs smoothly, the performance is stable, and the operation is stable without jitter and noise at the maximum processing speed of the X/Y axis of 100m/min.

2) Benefits: DA260 scheme is simple to operate, the response frequency is 2.0kHz, the setting time is shortened, the power failure and restart position will not be lost, improving the efficiency of machining and reducing costs.

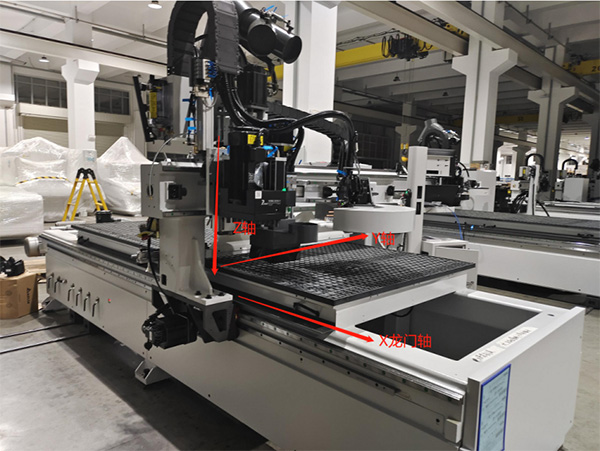

V  Field application

VI  Summary

At present, China's woodworking machinery and equipment still rely on imported equipment, only by improving the ability of independent innovation can we improve production efficiency and solve production problems. INVT DA260 servo has been widely used in the woodworking industry, servo response rate is fast, control performance is excellent and simple and convenient operation, cost reduction and efficiency increase, help improve the market competitiveness of wood machinery enterprises, efficient development of new products.
